Pvc Pet Acrylic Epoxy Resin Template Cutter Machine 1-6mm Apparel Milling 1800mm/s

Name: Pvc Pet Acrylic Epoxy Resin Template Cutter Machine 16mm Apparel Milling 1800mms
Brand: Kaemi or GM
Price: 4 USD

China Pvc Pet Acrylic Epoxy Resin Template Cutter Machine 1-6mm Apparel Milling 1800mm/s factory

Place of Origin : Hubei, China

Brand Name : Kaemi or GM

Price : $4,000.00--$4,999.00/sets 1-10 Sets

Model Number : GM1509M6

Certification : CE,CCC,ISO9001,etc

MOQ : 1set

Supply Ability : 500 Sets Per Month

Delivery Time : 3-7 Working Days

Packaging Details : Professional Wooden Case for Import and Export(with Official Chop)

Condition : New

Applicable Industries : Garment Shops, Manufacturing Plant, Machinery Repair Shops, Home Use, Retail, Printing Shops, Shoes/Hats/Bags/Furniture/Car Interiors Producton

Weight (KG) : 400

Showroom Location : Viet Nam

Video outgoing-inspection : Provided

Machinery Test Report : Provided

Warranty of core components : 2 years

Core Components : Engine, Motor

Warranty : 1 Year, For the Whole Machine

Product Name : 1800mm /s 1-6mm PVC PET Acrylic Epoxy Resin Template Board Cutter

Cutting Machine Frame and Case : Blue Frame+Silver Case

Machine Material : All Aluminum Countertops

Cutting Materials : PVC, PP,POM,Acrylic, PET, Kraft, etc

Cut Tools : Mill-cutter, Graver, Driller, Pen

Cutting Scope : 1500*1200mm

Cutting Thickness : ≤1.5mm-6.0mm

Cutting Speed : 500-1800mm/s

Cutting Machine Size : 1900*1750*1100mm

Applicable Fields or Industries : Clothing,Bags, Handbags,Furniture,Car Decoration,Paper Boxes

Contact Now

1800mm /s Milling Speed 1-6mm PVC PET Acrylic Epoxy Resin Template Board Cutter

Product Description

Pvc Pet Acrylic Epoxy Resin Template Cutter Machine 1-6mm Apparel Milling 1800mm/s

Main Features
1. Pneumatic Fixation Technology of High Efficiency Template
2.Integrated Floating Pressure Foot and Vacuum Cleaning Technology
3.Flexible Modification System for Cutting Starting Points and Cutting Sequence
4.Independent Templates Editing and Designing System

Model	GM-1509M3 GM-1512M3 GM1812M3
Cutting Window(Fabric Scope)	1500900mm , 15001200mm, 1800*1200mm
Overall Dimension(mm)	190014501100; 190017501100; 220017501100
Product Features	Compatible with various CAD softwares;Design while the machine is cutting
Cutting Speed	500-1500mm/s
Cutting Thickness	≤1.5mm-6.0mm
Cutting Materials	PVC, PP,POM,Acrylic, PET, Kraft, etc
Processing Methods	Mill, Cut, Drill, Plot
Cut Tools	Mill-cutter, Graver, Driller, Pen
Repeatability Precision	≤0.01mm
Software Resolution	0.025mm/0.01mm/0.1mm(Optional)
Communication Port	USB/RJ45 Ethernet
Buffer Memory Size	1M/8M/32M(Can butter more than 1 page)
File Formats	DXF/HPGL/GPGL/PLT Formats Compatible
Control Panel	9 Keys and LED Display
Driver System	Moons Motor driver; High-accuracy Lead Rail, Double Lead Rail on crossbeam
Supply Voltage	AC 220V/110V±10%, 50Hz/3.5KW
Fuse Value	30A/35A
Working Environment	-30~55℃ or -22~131℉
Fasten	Vacuum/Clamping
Mill Motor	800W/1500W, Water-cooling/Air-cooling, 5000~240000 RPM Inverter
Waste Elimination	220V/1.4KW, Industrial 15L Vacuum Cleaner

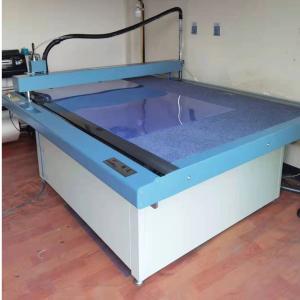

Product Show

Pvc Pet Acrylic Epoxy Resin Template Cutter Machine 1-6mm Apparel Milling 1800mm/s

Packaging & Shipping

Pvc Pet Acrylic Epoxy Resin Template Cutter Machine 1-6mm Apparel Milling 1800mm/s

Company Information

Pvc Pet Acrylic Epoxy Resin Template Cutter Machine 1-6mm Apparel Milling 1800mm/s

Since its establishment, GEMEI has developed a series of cutting machines for clothing, bags, shoes and hats, and obtained a number of software copyright and patent certificates. Based on the profound understanding of China’s garment, luggage and footwear industry, GM series of cutting machine combines the essence of Chinese and foreign technologies, closely combines the advantages of the world's advanced technology and Chinese manufacturing industry, adopts a novel design different from the domestic traditional cutting machine, and fully experiences the design principle of "good at core, simple in shape". After the first continuous drum cutter came into being in the middle part of China , we successively developed the sample cutter for the luggage industry and continuous cutting garment sample cutter.

"The competition of enterprises is the competition of talents." GEMEI firmly grasps the trend that the world manufacturing
industry is transferring to the middle part of the world, and has established a research and development team composed of doctors and senior engineers and other high-quality talents,and insists that "innovation" is the eternal power of the development of GEMEI.

Pvc Pet Acrylic Epoxy Resin Template Cutter Machine 1-6mm Apparel Milling 1800mm/s

FAQ

Pvc Pet Acrylic Epoxy Resin Template Cutter Machine 1-6mm Apparel Milling 1800mm/s

1. Q: Are you a manufacturer?
A: Yes, we are specializing in the r&d production for template cutter/inkjet cutter/pen writing cutter/cnc digital fabric cutter/graph plotter in this field for over 10 years.
2. Q: How do you pack these products?
A: Usually packed in wooden case and can pack according to export standard or your requirement.
3. Q: Is it customizable?
A: Yes, We have basic sizes commonly applied in the field and can customize according to your requirements.
4.Q: After-sales service
A: Yes, professional after-sales team and 24-hour technical support by phone, email or skype
5.Q: What is your lead time?
A: Spot goods usually take 2-4 days, and customization takes 5-7 days
